小型SAN的理想之選 – 可提供最高性能、簡便易用的可擴展交換機。

1.概述

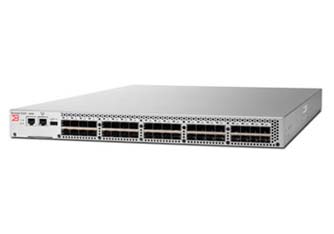

Brocade 5100交換機專為迅速增長的存儲環境而設計 — 在一個高效的1U機架中，可配置24、32或40個端口，結合了1、2、4和8 Gbps光纖通道技術。Brocade 5100適用于各種SAN架構，每個端口的功耗不超過2.5瓦，因此具有出色的功率和冷卻效率。它還集成了電源和風扇組件，以提高環境性能，降低總擁有成本。

業界領先的性能和靈活性

為了支持關鍵任務環境，Brocade 5100可提供同類中端SAN交換機中最佳的性能。它采用了一種無阻塞架構，最多支持40個端口同時以8 Gbps（全雙工）的速率運行，并且不會出現超量使用現象——總帶寬高達320 Gbps。此外，增強型Brocade ISL干線合并使一條邏輯鏈路最多可提供64 Gbps的平衡數據吞吐量。

為了最大限度地發揮虛擬服務器部署的價值，Brocade 5100提供了最高用量者（Advanced Performance Monitoring的一個組成部分）和適應性網絡服務—一套包括入站速率控制、流量隔離和服務質量（QoS）功能的工具。這些先進的功能可幫助優化Fabric架構的運行，確保關鍵任務應用可獲得充足的帶寬。為了進一步增強靈活性，提升價值，Brocade 5100還提供了集成路由功能，以連接不同F(xiàn)abric架構中的交換機。

Brocade 5100包括一種虛擬Fabric架構特性，可將物理SAN分成多個邏輯Fabric架構。這樣就可以根據應用、業務部門、客戶或流量類型實現Fabric架構隔離而不會降低性能、可擴展性、安全性和可靠性。

為了使用Fibre Channel over Ethernet（FCoE）和Converged Enhanced Ethernet（CEE）整合服務器連接，Brocade 5100可與Brocade 8000架頂式交換機全面兼容。

高可用性

Brocade 5100是實現災難恢復和業務連續性的可靠基礎，帶有多種企業級可用性特性，如可熱插拔的冗余集成風扇和電源組件等。另外，憑借更快速的系統升級和維護優勢，熱代碼加載和激活功能有助于最大限度地延長應用的正常運行時間。

為了支持SAN擴展，Brocade 5100允許將服務器和存儲設備部署在相距3400公里的地方，進而幫助企業實施最復雜的業務連續性和災難恢復計劃。

簡單快捷的擴展

Brocade 5100易于部署和管理，并且可以輕松集成到新的和現有的IT環境中。Brocade 5100具有按需端口擴展（Ports on Demand）（端口可從24個擴展至32或40個）等多種功能，因此，企業可以根據需要隨時擴展自己的存儲網絡而不會影響業務正常運行。另外，企業也可以先部署4 Gbps的SFP，然后根據需要將其升級為8 Gbps的SFP+。

簡化的部署和管理

Brocade交換機借助經濟高效的管理解決方案來優化存儲網絡資源，提高效率，同時降低擁有成本。EZSwitchSetup向?qū)У脑O(shè)計目的是使部署變得更加簡單。在多交換機環境中，Brocade DCFM Professional可以簡化管理，并對整個Fabric架構進行監控。

Brocade 5100可作為一款全光纖交換機或作為一款Brocade Access Gateway（接入網關）進行部署，能提供到任一SAN網絡的連接（其默認模式設置是一款交換機）。接入網關模式采用N_Port ID虛擬化（NPIV）交換機標準，可將光纖通道連接作為邏輯設備提呈到SAN Fabric架構中。如果利用支持NPIV技術的交換機和導向器進行連接，接入網關模式下的Brocade 5100可以連接到Brocade、McDATA或其它SAN Fabric架構。

Brocade光收發模塊

Brocade 8Gbps交換機需要Brocade光收發模塊。這種模塊有多種型號，可以滿足不同的速度和距離要求。這些小型可插拔（SFP）模塊最適合用于Brocade 8Gbps產品，可以最有效地提高性能，降低功耗，幫助確保關鍵任務應用的最高可用性。

行業標準遵從

Brocade產品符合行業標準，而且采用了普遍接受的工程實踐和流程。

2.特性

3.規格

Systems Architecture

Fibre Channel ports

• Switch mode (default): 24-, 32-, and 40-port configurations (8-port increments through Ports on Demand licenses); universal (E, F, M, EX, FL) ports

• Access Gateway Default Port Mapping: 32 F_Ports, 8 N_Ports

Scalability

• Full fabric architecture with 239 switches maximum

Certified maximum

• Brocade FOS fabric: 56 domains, 19 hops

• Single Brocade M-EOS fabric: 31 domains, 3 hops

• Larger fabrics certified as required; consult Brocade or OEM SAN design documents for configuration details

Performance

• 1.063 Gbps line speed (full duplex); 2.125 Gbps line speed (full duplex); 4.25 Gbps line speed (full duplex); 8.5 Gbps line speed (full duplex); auto-sensing of 1, 2, 4, and 8 Gbps port speeds; optionally programmable to fixed port speed; speed matching between 1, 2, 4, and 8 Gbps ports

ISL Trunking

• Frame-based trunking with up to eight 8 Gbps ports per ISL trunk with optional license; up to 64 Gbps per ISL trunk (8 ports × 8 Gbps [data rate])

• Exchange-based load balancing across ISLs with DPS included in Fabric OS

Aggregate bandwidth

• 320 Gbps: 40 ports × 8 Gbps (data rate)

Maximum fabric latency

• Locally switched ports 700 ns with no contention, cut-through routing at 8 Gbps

Maximum frame size

• 2112-byte payload

Frame buffers

• 2048 dynamically allocated, 1692 maximum per port

Classes of service

• Class 2, Class 3, Class F (inter-switch frames)

Port types

• FL_Port, F_Port, M_Port (Mirror Port), E_Port, EX_Port (Fibre Channel Integrated Routing); self-discovery based on switch type (U_Port); optional port type control

• Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port

Data traffic types

• Fabric switches supporting unicast, multicast (255 groups), and broadcast

Media types

• 8 Gbps: Requires Brocade hot-pluggable SFP+, LC connector; 8 Gbps Short-Wavelength Laser (SWL); 8 Gbps Long-Wavelength Laser (LWL); distance depends on fiber-optic cable and port speed

• 4 Gbps: Requires Brocade hot-pluggable, Small Form-factor Pluggable (SFP), LC connector; 4 Gbps Short-Wavelength Laser (SWL); 4 Gbps Long-Wavelength Laser (LWL); 4 Gbps Extended Long-Wavelength Laser (ELWL); distance depends on fiber-optic cable and port speed

USB

• 1 USB port for firmware download, support save, and configuration upload/download

Fabric services

Note: Some fabric services do not apply or are unavailable in Brocade Access Gateway mode

• Advanced Performance Monitoring (including Top Talkers); Adaptive Networking (Ingress Rate Limiting, Traffic Isolation, QoS); BB credit recovery; Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning); Dynamic Path Selection (DPS); Extended Fabrics; Fabric Watch; FDMI; Frame Redirection; FSPF; Integrated Routing; IPoFC; ISL Trunking; Management Server; N_Port Trunking; NPIV; NTP v3; Port Fencing; Registered State Change Notification (RSCN); Reliable Commit Service (RCS); Simple Name Server (SNS); Virtual Fabrics

FICON

• FICON, FICON cascading (FOS and M-EOS), and FICON CUP

Options

• Rack-mount rail kits (fixed, slide, mid-mount)

Management

Management

• HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), Telnet; Auditing, Change Management tracking, Syslog; Brocade Advanced Web Tools, Brocade Fabric Watch; EZSwitchSetup wizard, Brocade Data Center Fabric Manager (DCFM), Brocade Fabric Manager (optional, FOS environments only), Brocade EFCM 9.x (optional), command line interface; SMI-S compliant, SMI-S scripting toolkit; Administrative Domains; trial licenses for add-on capabilities

Security

• DH-CHAP (between switches and end devices), HTTPS, IPsec, IP Filtering, LDAP, Port Binding, RADIUS, Role-Based Access Control (RBAC), Secure Copy (SCP), Secure RPC, SSH v2, SSL, Switch Binding, Trusted Switch

Management access

• 10/100 Ethernet (RJ-45), in-band over Fibre Channel; serial port (RJ-45); USB; call-home integration enabled through Brocade DCFM, EFCM, and Fabric Manager

Diagnostics

• POST and embedded online/offline diagnostics, including RAStrace logging, environmental monitoring, non-disruptive daemon restart, FCping and Pathinfo (FC traceroute), port mirroring (SPAN port)

Mechanical

Enclosure

• Non-port to port side airflow; 1U, 19-inch

• EIA-compliant, power from non-port side

Size

• Width: 42.88 cm (16.88 in)

• Height: 4.29 cm (1.69 in)

• Depth: 61.05 cm (24.00 in)

System weight

• 9.34 kg (20.60 lbs) with dual power supplies, without SFP/SFP+ media

Environment

Temperature

• Operating: 0°C to 40°C (32°F to 104°F)

• Non-operating and storage: 25°C to 70°C (-13°F to 158°F)

Non-operating

• Temperature: –25°C to 70°C (–13°F to 158°F)

• Humidity: 10% to 95% non-condensing

Humidity

• Operating: 10% to 85% non-condensing

• Non-operating and storage: 10% to 95% non-condensing

Altitude

• Operating: Up to 3000 meters (9842 feet)

• Non-operating and storage: Up to 12 kilometers (39,370 feet)

Shock

• Operating: 20 g, 6 ms half-sine

• Non-operating and storage: Half sine, 33 g 11 ms, 3/eg Axis

Vibration

• Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz

• Non-operating and storage: 2.0 g sine, 1.1 grms random, 5 to 500 Hz

Heat dissipation

• Maximum 40 ports: 311 BTU/hr

CO2 emissions

• 335 kg per year (with 40 ports at 0.42 kg/kWh)

• 1.05 kg per Gbps per year

Airflow

• Dual, hot-swappable redundant fans integrated into power supply unit

• Maximum 29 CFM (cu. ft./min.); nominal 22 CFM

Power

Power supply

• Dual, hot-swappable redundant power supplies with integrated system cooling fans

Power inlet

• C13

Input voltage

• 85 to 264 VAC nominal

Input line frequency

• 47 to 63 H z

Inrush current

• Maximum of 35 amps for period between

• 10 to 150 ms at 50° C (122° F)

Power consumption

• Nominal 84 watts; maximum 91 watts with 40 ports at 8 Gbps
